端面和侧壁的方肩精加工是直接影响交付质量的关键工序。普通铣刀经常出现各类问题：光洁度不达标，后续返工影响交付；刀片有效刃口少，持续拉高刀具成本；机床扭矩功率不足、夹具刚性较弱，极易造成切削振动，频繁引发停机调试，拖累整体生产节拍。

Square shoulder finishing on faces and side walls is a critical operation that directly affects delivery quality. Conventional milling cutters often suffer from various issues: surface finish failing to meet requirements, leading to rework that delays delivery; too few effective cutting edges per insert, continuously driving up tooling costs; insufficient machine torque power and weak fixture rigidity, which easily cause vibration and frequent stoppages for adjustment, dragging down the overall production cycle time.

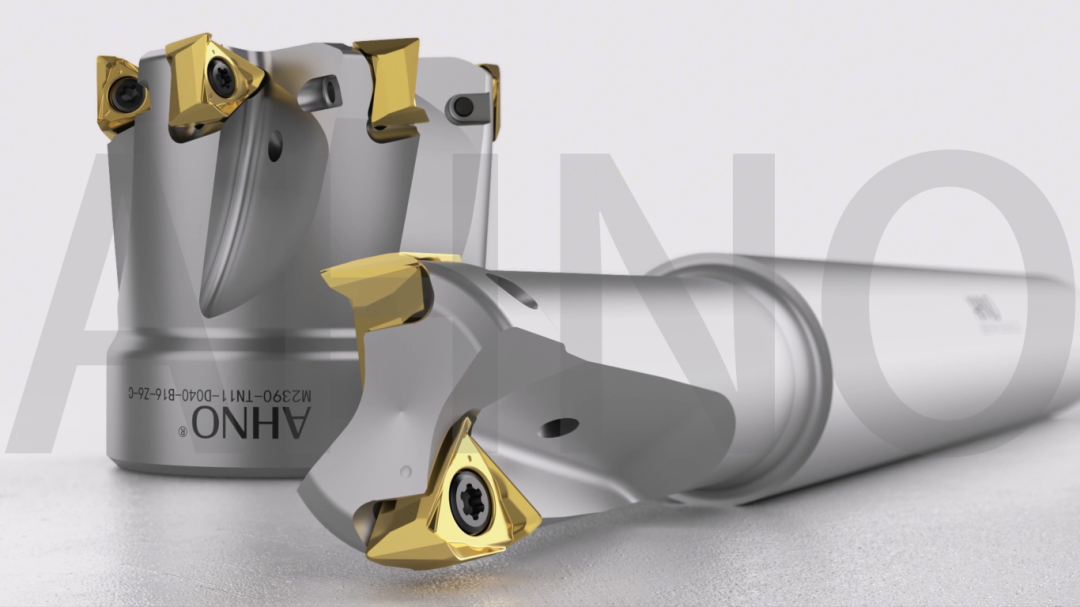

阿诺-Loong龍系列主推产品——M2390‑TN11/TN17高性能方肩铣刀，搭载创新设计的三棱形刀片，集经济性和工艺兼容性于一身，同时保证切削品质与加工效率。

The Ahno-Loong series flagship product — the M2390 TN11/TN17 high-performance square shoulder milling cutter — features an innovative triangular insert design that combines cost-effectiveness and process versatility while ensuring cutting quality and machining efficiency.

经济性：刀片可转位6次，充分挖掘每一片刀片价值，有效降低刀具成本。

Cost-effectiveness: Each insert offers 6 indexable cutting edges, maximizing the value of every insert and effectively reducing tooling cost per component.

全能性：胜任多样化铣削方式，减少换刀频次，提升现场加工的机动能力。

Versatility: Capable of handling diverse milling operations, reducing tool change frequency and enhancing shop-floor machining flexibility.

低阻轻快切削，实现出色的底面及侧面加工

Low-resistance,light cutting for excellent bottom and side surface finish

采用独特正前角设计，切削力表现可媲美正型刀片。面对刚性偏弱零部件、扭矩有限机床，有效抑制切削振动；刀体高精度刀片定位槽，严格管控轴向与径向跳动，无论是底面还是90度侧壁，都能稳定地获得出色的表面质量。

Featuring a unique positive rake geometry that delivers cutting forces comparable to positive inserts. Effectively suppresses cutting vibrations when machining less rigid components or using machines with limited torque. The cutter body features high-precision insert pockets that tightly control axial and radial runout, ensuring consistently excellent surface quality on both bottom faces and 90° side walls.

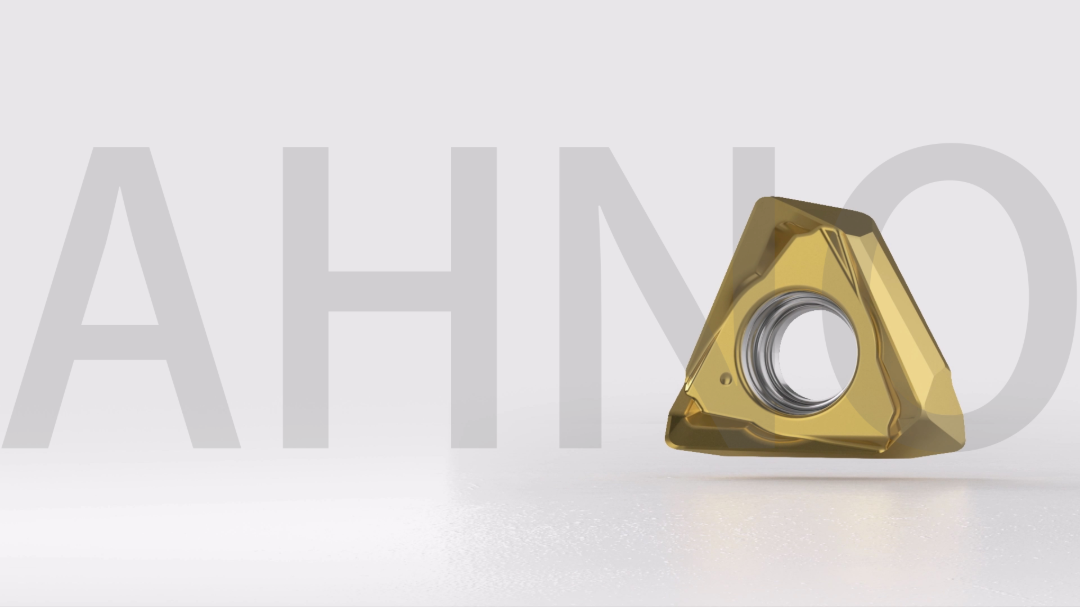

双面六刃刀片，经济性优势突出

Double-sided insert with 6 cutting edges, delivering exceptional cost-effectiveness

精磨级三棱形刀片，双面共计6个有效切削刃，对比传统2刃刀片，单片刀片利用率大幅提升，直接降低单件刀具成本。

Precision-ground triangular inserts with a total of 6 effective cutting edges (both sides). Compared with conventional 2-edge inserts, the utilization rate per insert is significantly improved, directly reducing tooling cost per component.

刀片有轻切削F5、中等M5两类槽型；TN1104最大切深5mm，TN1706最大切深8mm，覆盖不同切深加工需求。

Inserts are available in two chipbreaker geometries: F5 for light cutting and M5 for medium cutting; TN1104 offers a maximum depth of cut of 5 mm, while TN1706 provides up to 8mm, covering various depth-of-cut requirements.

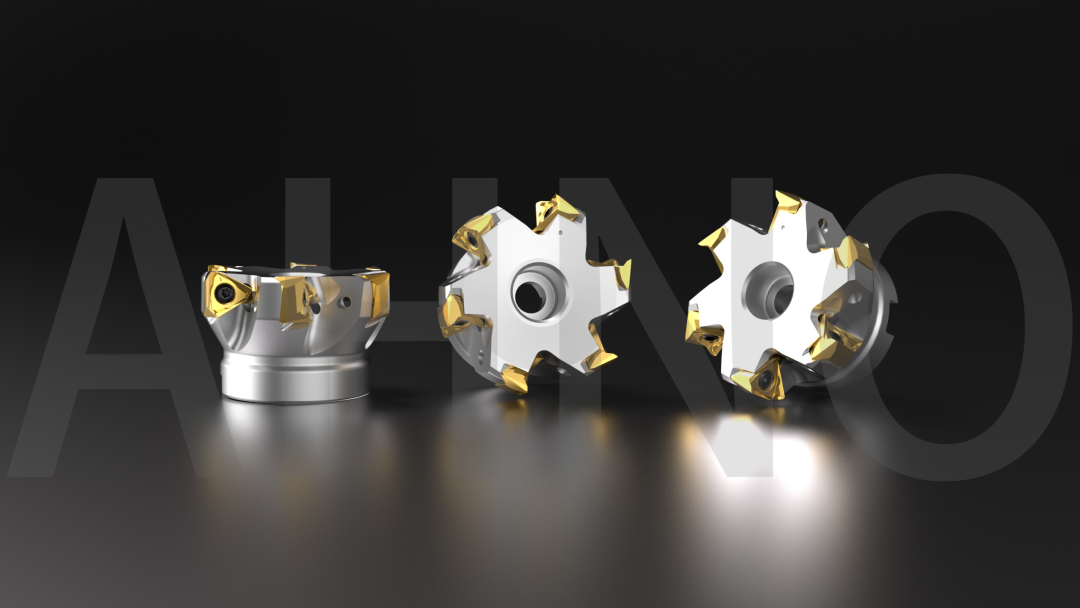

高可靠刀体，适配复杂现场工况

Highly reliable cutter body, adaptable to complex shop-floor conditions

刀体采用H13淬火模具钢 + 表面镀镍处理，耐磨抗冲击；精准90°主偏角，多样化接口，适配各类加工中心，客户现场使用机动灵活。

The cutter body is made of H13 quenched die steel with nickel plating for wear resistance and impact toughness; precise 90° entering angle and a variety of interface options make it compatible with various machining centers for flexible on-site use.

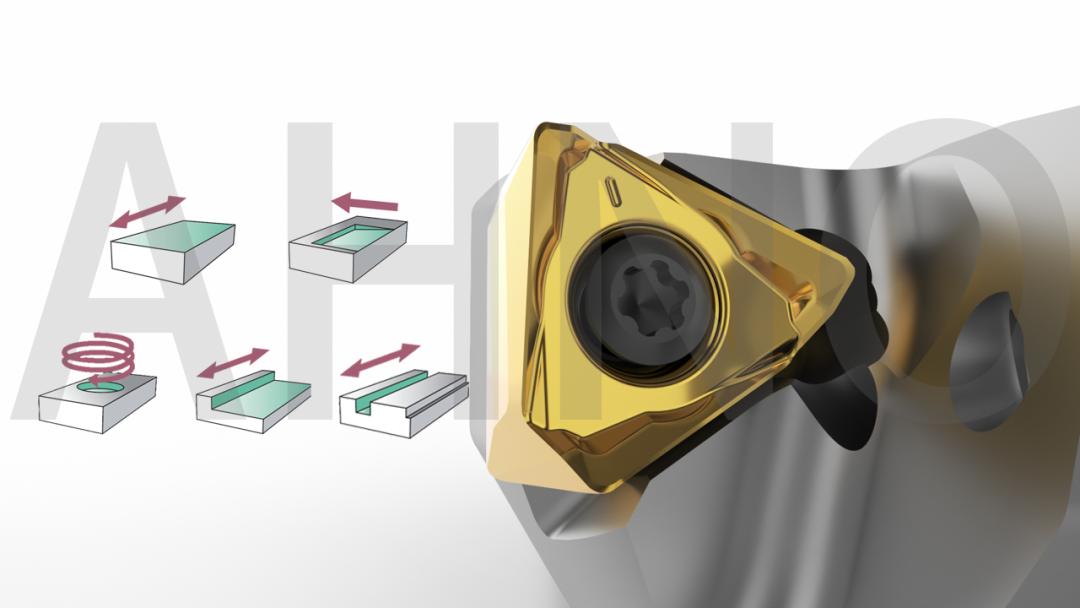

工艺全能，一刀多用

Process all-rounder — one tool, multiple applications

支持方肩铣、坡铣、插铣、螺旋插补铣、槽铣，一刀胜任平面、台阶、型腔多道工序，减少换刀频次，提升车间加工节拍。

Supports square shoulder milling, ramping, plunge milling, helical interpolation, and slot milling — one tool handles facing, shoulder, and cavity operations in a single setup, reducing tool change frequency and improving shop-floor production rhythm.

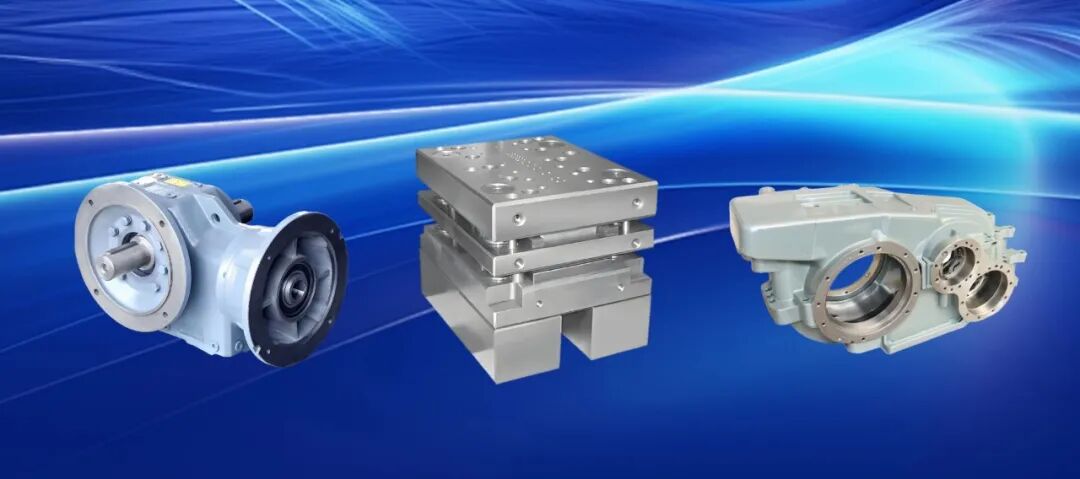

覆盖多元行业，适配复杂工况

Covering diverse industries, adapting to complex working conditions

广泛适配汽车零部件、模坯模架、工程机械等行业的精加工与中等加工场景。

Widely applicable to finishing and medium machining applications in automotive components, mold bases and die sets, construction machinery, and other industries.

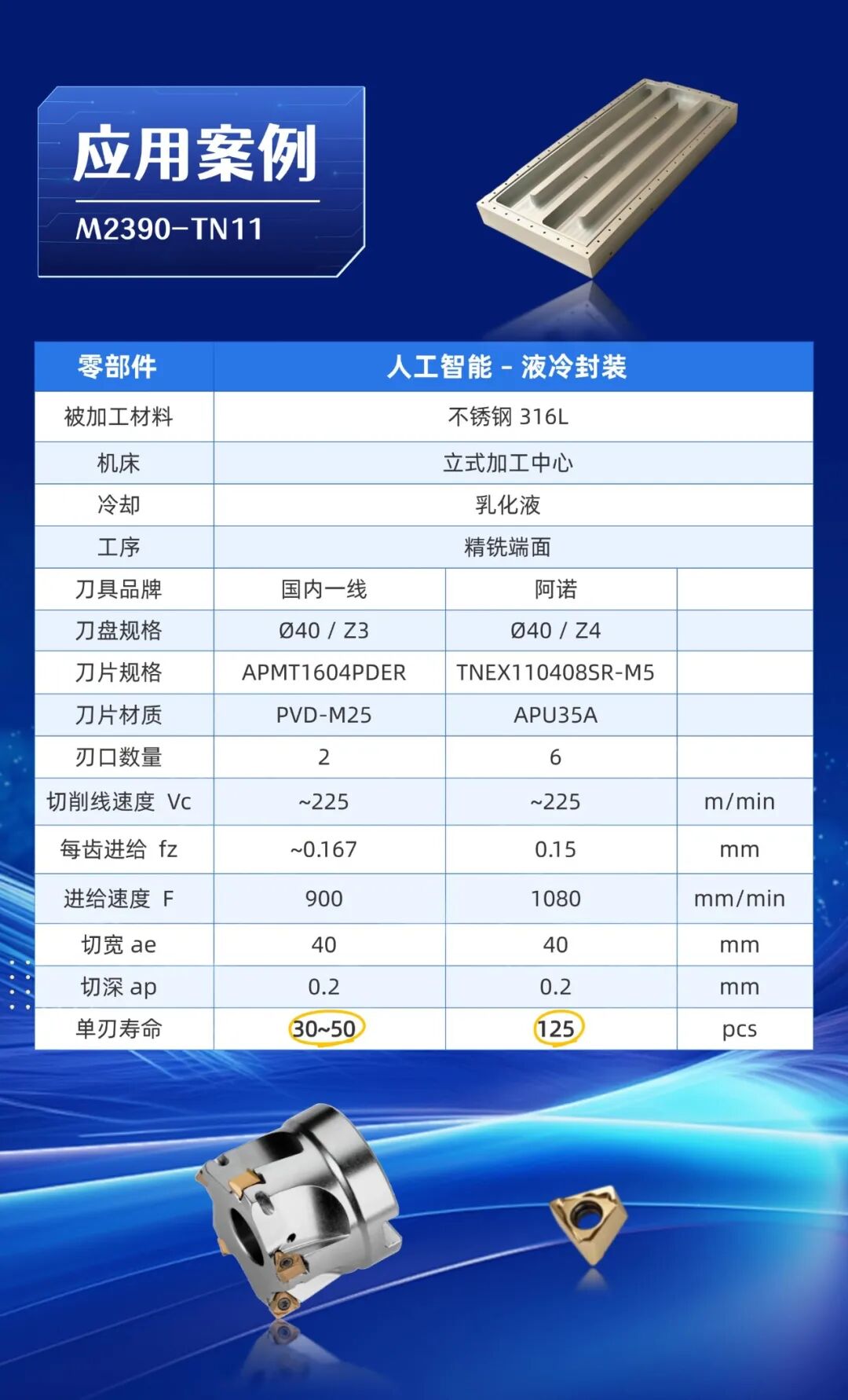

案例一：液冷行业零部件

Case 1: Liquid Cooling Industry Components

不锈钢封装支架，精铣端面，凭借刃口数量优势以及出色的刀具寿命，帮助客户大幅降低了生产成本，同时提高了加工效率。

Stainless steel housing bracket, finish milling of the end face. Leveraging the advantage of more cutting edges and excellent tool life, this solution significantly reduced production costs while improving machining efficiency for the customer.

案例二：通用机械零部件

Case 2: General Machinery Components

合金钢端盖，法兰面侧壁层切精加工，无论在刃口数量、加工效率或切削寿命，相比与传统刀片，都得到了显著提升。

Alloy steel end cover, layer finishing on the flange side wall. Compared with conventional inserts, this solution delivers significant improvements in cutting edge count, machining efficiency, and tool life.

活动周期：2026年7月1日 — 2026年12月31日

Campaign Period: July 1, 2026 – December 31, 2026

阿诺机加工降本季火热进行中，从活动开启以来便不断收到客户对刀具和降本方案的咨询。本次福利覆盖全系铣削爆款，从刀体采购、刀片耗材、加工效率、定制工艺四大维度赋能企业降本增效。

The Ahno Machining Cost-Reduction Season is now in full swing, and since its launch we have been receiving continuous customer inquiries about tooling and cost-saving solutions. This promotion covers our entire range of bestselling milling products, empowering businesses to reduce costs and improve efficiency across four dimensions: tool body procurement, insert consumables, machining efficiency, and custom process solutions.

无论是想要试样选型验证加工效果、批量备货，还是需要针对零件工况定制专属铣削工艺方案，均可联系阿诺对应业务人员，锁定本次专属优惠。

Whether you need to conduct trial runs for performance validation, stock up for batch production, or require a tailored milling process solution for specific workpiece conditions, please contact your local Ahno sales representative to secure this exclusive offer.
